Cartridge filter equipment in sandblasting room

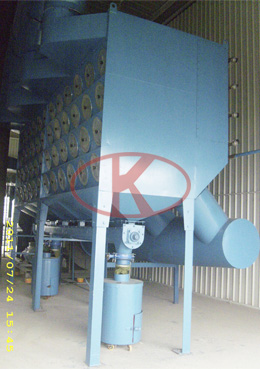

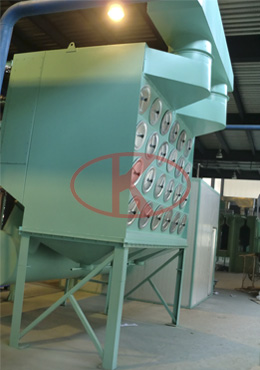

oblique-inserted cartridge filter KLT4-24 cartridge filter KLT4-48 cartridge filter
KLT3-12 oblique-inserted cartridge filter KLT4-24 cartridge filter KLT4-48 cartridge filter

KLT series settlement type cartridge filter

   KLT series settlement type cartridge filter is mainly used in the collection of floatable dust and particles , which is a part in the production process for controlling the air pollution. It can ensure the high efficient successive dust collection. This machine has the advantage of stable operation, more processing air, small volume, convenient maintainence.
The dust contained air enters into the KLT deduster through the top inlet, passing through the cartridge filter, and the dust is collected on the surface of cartridge filter, the filtered clean air enters into the clean air booth through the cartridge center and exhausted through the fan.

   The cartridge filter can clean the ash automatically and intermittently, in a given time only one unit of cartridge filter is cleaning ash offline. In the process of cleaning ash, the impulse spray control meter plugs in of the electro-magnetic pulse valve to make the corresponding diaphragm valve to spray impulse high pressure air, so the dust attached on the surface of cartridge filter can be removed and dust fall into the dust hopper  and then into the ash collecting barrel.

    The cartridge filter adopts high-performance fiber integration filter material produced by USA Donaldson Corp, for dust particles of 0.5um the collecting efficient can reach up to 99.99% to insure the dust content of exhausted air is less than 5mg/m3.



KLT3-12 type cartridge filter features:
1.high dedusting efficiency, meeting the national GB-7693-87 environment protection requirements.
2.apply to many working circumstances.
3.according to the dust feature, select different cartridge filter materials, to solve problems of dust processing.
4.simple structure, small volume.
5.building block structure to compose required processing air volume.
KLT4-24 type cartridge filter deduster features:
1.simple structure, apply to suspended type single dust producer.
2.multi-collector component, can be used in different process air situations.
3.dust collecting part is designed scientifically, convenient to clean the dust.
KLT series cartridge deduster technical parameters
Type Air volume m3/h Unit Cartridge filter no Filtering area m2 Length*width*height mm
KLT3-12 5000-11000 1 12 276 1021×2275×4513
KLT3-24 10000-22000 2 24 552 2042×2275×4513
KLT3-36 15000-33500 3 36 826 3063×2275×4513
KLT3-48 20000-45000 4 48 1104 4084×2275×4513
KLT3-60 25000-55000 5 60 1380 5105×2275×4513
KLT3-72 30000-67000 6 72 1656 6126×2275×4513
KLT4-16 6000-15500 1 16 368 1021×2275×4996
KLT4-32 12000-30000 2 32 736 2042×2275×4996
KLT4-48 20000-45000 3 48 1104 3063×2275×4996
KLT4-64 26000-60000 4 64 1472 4084×2275×4996
KLT4-80 33000-75000 5 80 1840 5105×2275×4996
KLT4-96 40000-90000 6 96 2208 6126×2275×4996
