ASM high pressure airless sprayer
ASM Series heavy duty and industrial high-pressure airless sprayer:
heavy carts Airless sprayerHeavy-duty high-pressure airless sprayer schematicsHeavy-duty high-pressure airless sprayer schematics
ASM-631 heavy carts Airless sprayer
Coatings used: phenolic, alkyd resins, polyurethane, architectural latex paint ,high viscosity coatings, etc;
Heavy duty coatings: epoxy zinc-rich primer, epoxy intermediate coat of iron, polyurethane finish, chlorinated rubber paint;
Uses: ships, bridges, containers, pipelines, storage tanks, steel and other metal components and architectural paint spraying.



ASM Related technical parameters of ASM series of high-pressure airless sprayer
Model ASM-631 ASM-681
Fluid Pressure Ratio 63 : 1 68:1
Weight (kgs) 83 85
Dimension (cm) 73x75x125 73x75x127
Output (GPM) L/min 11 (2 GPM) 11 (2 GPM)
Max.Dischargepressure 5670psi / 390bar 6120psi / 422bar
Air Pressure Pange 40～90psi / 3-6.2bar 40～90psi / 3-6.2bar
Max.Pump Speed(CYCLE/min) 50 50
Stroke(mm) 120 127



Heavy-duty carts Airless sprayer Trolley heavy-duty and industrial high-pressure airless sprayer

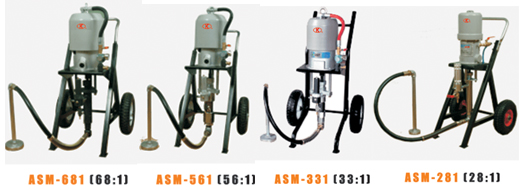

ASM-451/ASM-681/ASM-561/ASM-331/ASM-281Heavy carts Airless sprayer



ASM Related technical parameters of ASM series of high-pressure airless sprayer
Model ASM-721 ASM-561
Fluid Pressure Ratio 72 : 1 56:1
Weight (kgs) 100 100
Dimension (cm) 75x80x125 75x80x125
Output (GPM) L/min 28 (7 GPM) 32 (8 GPM)
Max pressure 6330psi / 446bar 4927psi / 347bar
Air Pressure Pange 40～90psi / 3-6.2bar 40～90psi / 3-6.2bar
Max.Pump Speed(CYCLE/min) 50 50
Stroke(mm) 120 120



ASM Related technical parameters of ASM series of high-pressure airless sprayer
Model ASM-451 ASM-281
Fluid Pressure Ratio 45 : 1 28:1
Weight (kgs) 86 33
Dimension (cm) 73x75x125 56x63x98
Output (GPM) L/min 12.5 (3 GPM) 4 (1 GPM)
Max.Dischargepressure 4050psi / 280bar 2800psi / 196bar
Air Pressure Pange 40～90psi / 3-6.2bar 40～100psi / 3-7bar
Max.Pump Speed(CYCLE/min) 50 60
Stroke(mm) 120 100
