Shanghai Liangshi designed and manufactured a 30-meter-wide, 7-meter-high 7-meter full-mechanical recycling sandblasting room and a set of 28-meter-wide 4.5-meter-high 4-meter environmentally-friendly spray booth system for one of the world's top 500 Sino-US joint ventures. At present, the equipment of the environmentally-friendly sandblasting room spray booth is stable and provides reliable guarantee for the surface treatment quality and coating of the customer's product parts. This set of environmentally-friendly sandblasting room spray booth is mainly used for the blasting of heat-exchanged pressure components of thermal power boilers. Pill cleaning and surface painting treatment.

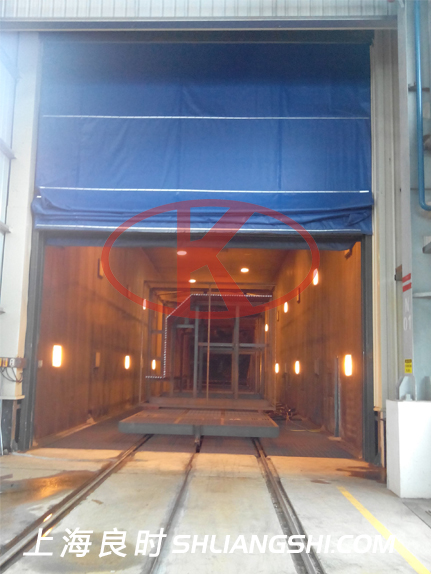

Power generation equipment heat exchanger parts mechanical recovery type sandblasting room
|
|

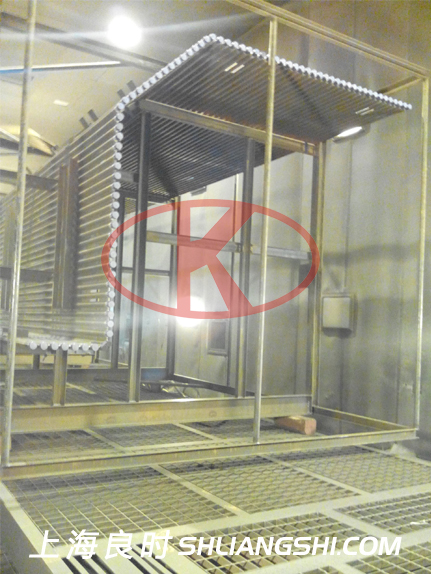

Power generation equipment heat exchanger parts environmentally friendly dry sandblasting room
|
|
This environmentally friendly all-mechanical recycling blasting room consists of a fully enclosed steel structure blasting chamber body (with high wear-resistant rubber sheet), a water platform truck ground conveying system, a flexible lifting gate, and an abrasive recycling system using a horizontal belt conveyor and Vertical bucket elevator, the ball dust separation adopts the air-selection type of dust separator for three-stage screening, the abrasive recovery and dust removal adopts the secondary dust-removing equipment, the cyclone dust collector and the filter cartridge dust collector, and the sandblasting room adopts the side upper air inlet side suction. The wind is also equipped with a chamber filter cartridge dust collector. The shot peening system adopts one ACMR-4W-1A single-cylinder single-gun air-controlled sand blasting machine. The blasting chamber indoor lighting adopts the combination of top lighting and side lighting, and electrical control. It is controlled centrally by the PLC of the electric control cabinet. It adopts the PLC controller of Siemens to realize the function control according to the program, and has two modes of operation: automatic and manual.
|
|
This environmentally friendly all-mechanical recycling blasting room consists of a fully enclosed steel structure blasting chamber body (with high wear-resistant rubber sheet), a water platform truck ground conveying system, a flexible lifting gate, and an abrasive recycling system using a horizontal belt conveyor and Vertical bucket elevator, the ball dust separation adopts the air-selection type of dust separator for three-stage screening, the abrasive recovery and dust removal adopts the secondary dust-removing equipment, the cyclone dust collector and the filter cartridge dust collector, and the sandblasting room adopts the side upper air inlet side suction. The wind is also equipped with a chamber filter cartridge dust collector. The shot peening system adopts one ACMR-4W-1A single-cylinder single-gun air-controlled sand blasting machine. The blasting chamber indoor lighting adopts the combination of top lighting and side lighting, and electrical control. It is controlled centrally by the PLC of the electric control cabinet. It adopts the PLC controller of Siemens to realize the function control according to the program, and has two modes of operation: automatic and manual.......
|
