Dry type painting room and VOCs processing equipment for customers
Shanghai Liangshi designed and manufactured a robotic painting dry coating room and VOC organic waste gas treatment equipment for a Japanese company. At present, the environmentally-friendly dry coating room and VOC waste gas treatment equipment are stable and safely coated for customers' products. The installation provides reliable guarantee; the dry coating room of this set is mainly used for automatic painting of graphite robot on the surface of automobile engine shock absorber. The VOC processing device is used for direct catalytic combustion of VOC organic waste gas in paint and meets environmental emission standards.
.jpg)

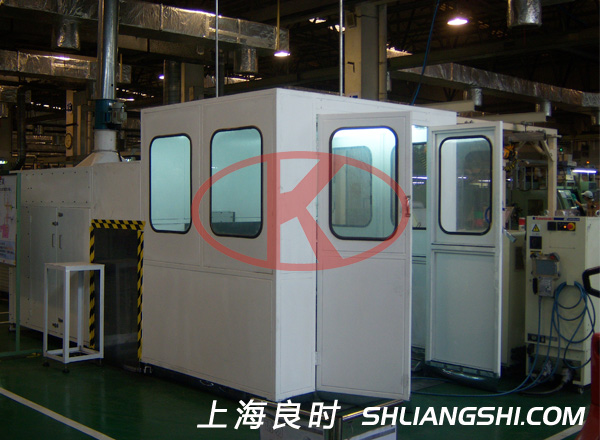

Robot dry painting room
.jpg)

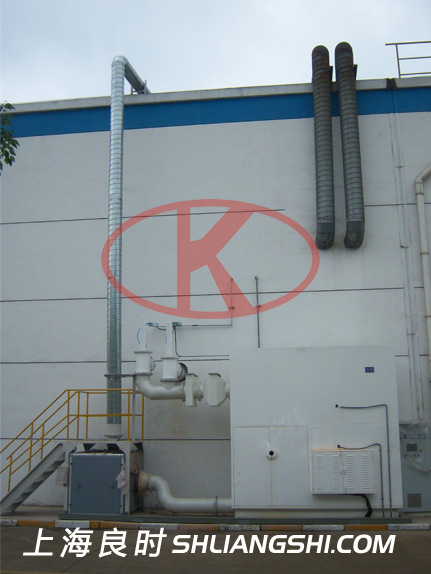

VOC organic waste gas treatment equipment
The working principle of this dry coating room + VOC organic waste gas treatment device: the spray of paint spray generated during painting operation will cause pollution to the human body and the atmosphere. The exhaust gas discharge of this painting room adopts labyrinth block filter sedimentation and paint mist. Cotton filtration and catalytic combustion are combined in three ways; the exhaust gas is drained by high-pressure fan to the national standard discharge (GB16297-1996 comprehensive emission standard for atmospheric pollutants). Because the temperature in the catalytic chamber is 300-350 ° C, which is the discharge temperature; in order to make reasonable use of the heat source, we add a heat exchanger in front of the induced draft fan to preheat the new exhaust gas, and reasonably set the area of ??the heat exchanger to achieve continuous operation. When the heat exchange is balanced, the electric heating stops working, and the whole system maintains the heat balance operation.
