Ship engineering

Compressor / rear cooler / Pressure Vessels

Compressed air filtration and drying system flow chart

Rear coolerRefrigeration dryer：
Gas source and purification equipment: Clean compressed air is necessary for the blast spraying operation, the water contained in the air and the water vapor generated during the compression will seriously affect the quality of spraying blast.

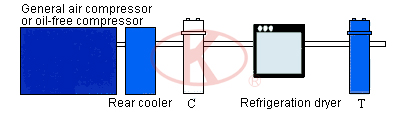

 General purpose protection

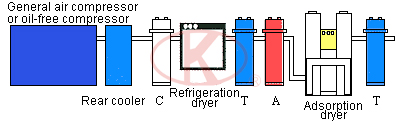

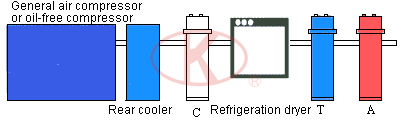

Low dew point system
Special low dew point system
High-temperature refrigeration dryer Refrigeration dryer Water cooled aftercooler

High-temperature refrigeration dryer (air) conditions of use:
Working pressure: 0.7MPa highest standard 1.0MPa; entrance allowable temperature: 65 ℃ below the highest standard 80 ℃; ambient temperature: 38 ℃ highest standards below 40 ℃.
JCD Specification Table
Model Air handling capacity Dimensions (mm) Export diameter
JCD-5SG 0.6 530×350×450 Rc1/2″
JCD-10SG 1.2 810×430×950 R1″
JCD-20SG 2.3 810×430×950 R1″
JCD-30SG 3.5 810×430×950 R11/2″
JCD-60GF 6.5 1080×680×1365 R11/2″
JCD-75GF 8.5 1330×680×1450 R2″
JCD-120GF 12.5 1605×630×1450 DN80（3″）Flange
JCD-150GF 17 1580×900×1760 DN80（3″）Flange
JCD-200GF 23 1580×900×1760 DN80（3″）Flange
JCD-250GF 27 1730×995×1840 DN80（3″）Flange
JCD-300GF 34 1980×995×2025 DN100（4″）Flange
JCD-K600NF 65 2700×1150×2100 DN125（5″）Flange

Sand suction machine / dehumidifier / heater series dehumidifierslast
