Hook type shot blasting machine series

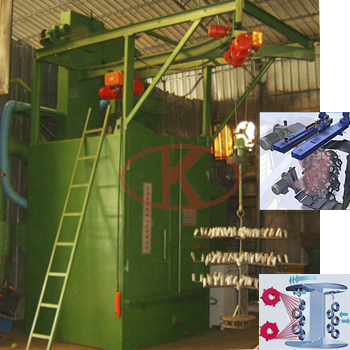

Hook suspended conveying shot blasting machine

The features:
1. Construction free of pit, convenient installation, reduction of investment cost;
2. Compact structure, high efficiency, good cleaning quality, working in safety and running in stable;
3. Double-hook structure, work separately, increase productivity efficiency, the hanger is by planet principle.
4. Two-stage structure (vortex dedusting, cartridge filter), large air volume, clean ash filtering.



Application range:
The machine applies to cleaning and blasting many kinds medium, large quantities forging, casting and stamping parts.







Technical parameter list of LSP series single/double hook suspended conveying shot blasting machine

Type LSP375 LSP376 LSP378D
Maximum each weight of cleaned workpiece(kg) Ф600×1200 Ф600×1200 Ф800×1500
Maximum loading weight(kg) 600 600 800
Cleaning time(min) 5-12 5-12 5-12
Hook qty 1 2 2
Total capacity(kw) 20.95 21.7 31.2
Dimension(mm) 3500×2000×4500 3500×2000×4500 4000×2300×4800

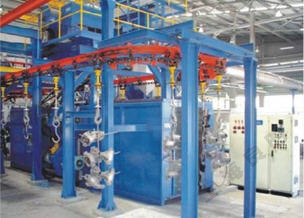

Suspended conveying shot blasting line
Feature:

Suspended conveying shot blasting line:
1.Compact design and simple operation.
2.High efficient shot blasting capability.
3.Good sealing to insure cleaning and collecting of dust.
4.Variety of equipment to insure better choice.
5.Variety of equipment to insure better choice.
6.Safe operation, low repair rate.
Application:
1.Especially suitable for thorough shot blasting of castings that is crisp and not for collision.
2.Rust and oxide layer removing or surface strengthening of castings.
3.Remove rust and oxide layer, increase roughness and cleanliness to improve combination force.
4.Remove rust and oxide layer, increase roughness and cleanliness to improve combination force.



suspended conveying shot blasting line of automobile A B column suspended conveying shot blasting line of car-frame structure part
suspended conveying shot blasting line of automobile A B column suspended conveying shot blasting line of car-frame structure part
suspended conveying shot blasting line of automobile parts mould suspended conveying shot blasting line of automobile maintenance equipment part
suspended conveying shot blasting line of automobile parts mould suspended conveying shot blasting line of automobile maintenance equipment part
