Crawler type shot blasting machine

Crawler type shot blasting machine applies to surface cleaning of all kinds of spare parts. All metal casting surface sand burning; black metal surface rust-removing; stampings surface blur treatment; forging and thermal treatment.



LSPL series crawler type shot blasting machine technical parameter:

Type	LSPL30	LSPL300	LSPL300
Maximum weight of cleaned workpiece（kg）	5	8	15
Maximum loading weight（kg）	100	600	600
Total capacity（kw）	1900×1900×4600	10.85	10.85
Dimension(mm)	1200×650×2250	1600×1700×3150	1900×1900×4600

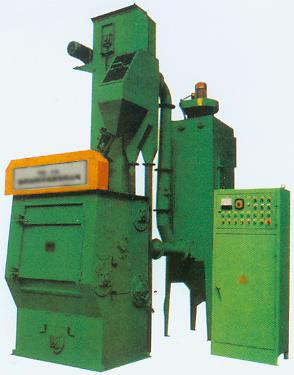

LSPL100 crawler type shot blasting machine	LSPL100 crawler type shot blasting machine
LSPL30 crawler type shot blasting machine	LSPL30 crawler type shot blasting machine



LSQZR980 Track roller type shot blasting machine： novel design, beautiful appearance; and low noise, low dust, high production efficiency, suitable for mass production of small and medium-sized parts; projectile can be automatically recycled, less material consumption, low cost; blasting area can be radiated to the blind spot of the cavity of workpiece, evenly effect.
Model：LSQZR980 (Note: There are a variety of specifications to choose)
dimension:1600*1700*3150 mm
Volume：100L
Shot blast capacity:100Kg/min
Exaltation separation quantity:6t/h
Shot blast separation mode:sorting
Dust collection air volume:2000m3/h
Total output:10.85Kw
Single workpiece weight:8Kg
Maximum filling weight:300Kg



LSP32 series crawler type shot blasting machine

LSP32 series crawler type shot blasting machine



LSP32 series crawler type shot blasting machine applies to rust removing or shot peening of different brand and medium/large batch. The weight of casting and thermal treating workpiece must be below 150kg,



Item	Type	Q326C
Q326C	T/h	0.6-1.2
feeding volume	kg	200
maximum weight/pcs	kg	100
tray diameter	mm	ф600
effective volume	m^3/h	0.15
shot blasting qty	kg/min	100
dedusting air volume	m^3/h	2200
power consumption	mm	12.6
dimension	mm	3681×1650×5800
total volume	kg	2340



LSP32102C crawler type shot blasting machine applies to surface cleaning of casting, forgings, nonferrous metal, electric control is routine control or PLC automatic control,



load weight	600kg	feeding mechanism	1.5w
each weight	30kg	elevator	3kw
workpiece length	500mm	front door of booth	1.1kw
Track end face turntable	1000mm	drive	1.1kw
rotating speed	3.8r/min	shot blaster	15kw
shot blasting capacity	250kg/min	dedusting	4.37kw
ventilation volume	3500m*m*m/4	total capacity	26.07kw



FD-Q3110 roller type shot blasting machine

FD-Q3113 roller shot blasting machine



FD-Q3110 roller type shot blasting machine is making use of blades at high speed to blast the shots to rotating forgings to remove oxide layer. It applies to cleaning of medium and small forgings.



roller diameter	1000mm	shot blasting volume	100kg/min
roller inner diameter	800mm	blade diameter	420mm
roller rotating speed	3r/min	blade rotating speed	2300r/min
maximum effective volume	0.1m*m*m	blasting speed	60m/s
maximum load weight	300kg	air suction volume	800m*m*m/h
workpiece length	400mm	separating efficiency	96%
workpiece unit weight	15kg	Equipment dimension	2078×2165×1861mm
productivity	600-1500kg	weight	3580kg



FD-Q3113 the feature of roller type shot blasting machineis successive cleaning, it can be installed on the production line and can be used single, it can be linked and single-acted, it can be operated easily and flexibly, with large shot blasting volume and blasting speed, good cleaning effect.



roller diameter	1300mm	shot blasting volume	200kg/min
roller diameter	4r/min	ventilation	1400m*m*m/h
maximum efficient volume	0.33m*m*m	total capacity	14kw
unit weight of workpiece	1100mm	14kw	2700×2800×2300mm
length of workpiece	1100mm	total weight of	7050kg

rotary disk/ rotary table shot blasting machine series

• LSP3525C rotary table shot blasting machine has high efficiency, low electric consumption, small coverage, low installation cost, easy for maintenance, good appearance, safe operation. It mainly applies to surface cleaning of gear, aluminum alloy, castings and flat thin parts.



Parameters of LSP3525C rotary table shot blasting machine：

Diameter of rotary table	ф2500mm	Shot diameter	ф0.5-2mm
ф0.5-2mm	0.36r/min	Lifting capacity of elevator	29T/h
maximum load volume	1000kg	capacity	2.2kw
Dimension of workpiece	1000×800×400mm	total ventilation	3456m^3/h
total capacity(exclude dedusting)	25.2kw	maximum shot blasting volume	240kg/min（2sets）
Type and capacity of shot blaster	Q034	equipment total weight	6118kg
6118kg	6118kg



Rotary disk shot blasting machine	LSP3525C Rotary table shot blasting machine
LSP3516 Rotary table shot blasting machine	LSP3514H Rotary table shot blasting machine



LSP3516 rotary table shot blasting machine applies to surface cleaning of small batch flat thin parts, and surface strengthening of parts.



Diameter of rotary table	ф1600mm	ф1600mm	ф1600mm
rotary table revolution	0.36r/min	Lifting capacity of elevator	Lifting capacity of elevator
maximum load volume	600kg	capacity	2.2kw
Dimension of workpiece	700×250×250mm	total ventilation	2500m^3/h
total capacity (exclude dedusting)	18.9kw	maximum shot blasting volume	240kg/min
Type and capacity of shot blaster	Q034 I	equipment total weight	3910kg
Equipment dimension	2200×2700×4000mm



LSP3514H rotary table shot blasting machine has various functions, high efficiency, good quality, the big rotary table is rotating door structure, with 8 groups baffle plate insulating 8 rotary tables collocation, each collocation is equipped with a set of fixture, the workpiece is installed on the tooling and insert into 8 drilling holes of small rotary table, rotating automatically, the blaster blasts shots with high speed blades onto the workpiece.

Diameter of big rotary table	ф1400mm	First shots load	About 3000kg
Station qty of small rotary table	8
Qty of shotblaster	4	Once cleaning time	8-10min
capacity	11kw	Lifting capacity	50T/h
shot blasting volume	220kg/min×4	total ventilation	7200m^3/h
Max dimension of workpiece	ф200×1500mm	total capacity(exclude dedusting)	97kw
Maximum weight of workpiece	50kg	equipment total weight	15200kg



LSQ365C、LSQ3610H trolley shot blasting machine

LSP7603B trolley shot blasting machine



LSQ365C、LSQ3610H trolley shot blasting machineapplies to surface cleaning and strengthening of multi-brand medium and large castings, forgings, weldment.



Name	LSP365C	LSP3610H
dimension of workpiece	φ2500×1300mm	φ2500×1300mm
trolley load	5000kg	10000kg
productivity	10000kg/h	20000kg/h
Shot diameter	φ1.5-2.5mm	φ1.5-2.5mm
elevating, separating, conveying volume	40t/h,40t/h,40t/h	40t/h,40t/h,40t/h
total air volume	26400m^3/h	26400m^3/h
total capacity	53.2kw	55.2kw
dimension of equipment L×W×H	9000×4200×9290mm	9000×4200×9290mm
total weight	14300kg	14300kg



LSP7603B trolley shot blasting machine is mainly used for shot blast cleaning, with elevating structure to supplement on the inner chamber. It applies to surface cleaning and strengthening of large castings, forgings and weldment in water pump, steam turbine, machine tool, motor, chemical machinery, construction machinery industries.



Indoors effective volume	5000×5000×3400mm	dimension of workpiece	ф4000×2000mm
Max load weight of rotary table	30000kg	Vibrating conveyor volume	40T/h
Blaster, shot blasting volume	Q035 4sets 280kg/min×4	Shot blaster, shot blasting volume	1set、1000-1500kg/h
Motor capacity	4×22kw	total ventilation	31750m^3/h
Lifting capacity of elevator	80T/h	Dimension of equipment (opening doesn’t include steel length)	9167×7680×10874mm
Separator, separating volume	80T/h
First shots load	3500kg	Underground depth	2900mm
Shot diameter	ф1-2m	equipment total weight	38725kg
