Gas wire melting spraying equipment
Use with oxygen - acetylene gas, propane gas or the like as a heat source a combustible gas, compressed air (or other inert gas) as the atomization, transportation, cooling power, using gas or electricity to the wire feed driving force, after the single wire to melt sprayed into the after surface pretreatment of a melt to obtain the desired coating spray coating device.
Such equipment can be hand-held or clamped on the machine for spraying, compact and flexible, reliable performance, wide application, has been widely used in water conservancy, electric power, machinery, metallurgy, petroleum, paper, printing, aviation, shipbuilding and other industries.
Purpose and scope:
|
1、Anti-corrosion
|
Towers, bridges, gates, ships, containers, pipes, annealing bag, metal coating all kinds of steel and non-metallic surfaces
|
|
2、Equipment remanufacturing
|
Crankshaft, pistons, piston, guide posts, rails, rollers, sliders, a variety of friction surfaces, mechanical spindles
|
|
3、Spray materials:
|
Zinc, aluminum, lead, copper, molybdenum, carbon steel, stainless steel, babbitt, etc.
|
Use oxy-acetylene gas as the heat source, compressed air (or other inert gas), atomization, conveying, cooling, power, using a compressed air-driven pneumatic motor- driven actuator transmission wire melting and firing gun called the shooting wire gas-suction pneumatic thaw shot gun.
Image：Model LSQX-1 metal wire sprayer
You should configure the accessory equipment:
Reach more than 1 class 3 level dry and clean compressed air system::air flow rate≥1.5M3/min,air supply pressure≥0.7MPa；
Security oxygen - acetylene gas and equipment;
Surface pretreatment equipment: blasting machine, shot blasting machine, EDM napping machine;
Operating personnel protective equipment.
Performance and related technical data:
|
Serial number
|
Project
|
Data and instructions
|
|
1
|
Types
|
Model LSQX-1 metal wire spray gun
|
|
2
|
Operation
|
Fixed or handheld operation, generally recommended hand-job mode
|
|
3
|
Power source
|
Compressed air (or other inert gas)
|
|
4
|
Speed mode
|
Friction clutch
|
|
5
|
Weight
|
≈1.9 Kg
|
|
6
|
Dimensions
|
215×90×180
|
|
7
|
Heat source
|
Oxygen + acetylene gas
|
|
8
|
Types
|
LSQX-1A
|
LSQX-1B
|
|
Acetylene high-speed spray gun
|
Acetylene gas velocity spray gun
|
|
Applicable
|
The melting point of the wire≤750oC
|
The melting point of the wire≥750oC
|
|
9
|
Wire
|
General φ2.0, φ2.3, φ3.0 (or imported materials φ3.17)
|
|
10
|
Wire Feed
|
≥7.5Kg
|
Note：Because it involves the ability to use the user's operation, this product is currently sold only for old customers and provide after-sale protection, the new user all recommended LSQX-2 series.

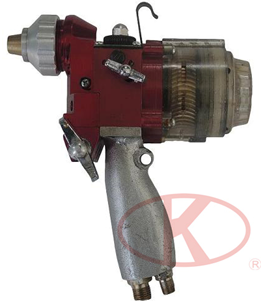

Image：Model LSQX-2 electric wire gas melting spray gun
Image：Model LSQX-2 electric wire gas melting spray gun accessory speed controller
Ancillary equipment should be configured：
Reach more than 1 class 3 level dry and clean compressed air system:air flow rate ≥1.5M3/min,air supply pressure≥0.7MPa；
Security oxygen - acetylene gas and equipment;
Surface pretreatment equipment: sand blasting machine, shot blasting machines;
Operating personnel protective equipment.
This type of spray gun due to its extremely high reliability and ease of operation, extensive suitability and particularity of surface coating quality of materials, and other outstanding features, a selected equipment for special-purpose users.
Performance and technical data:
|
Serial number
|
Project
|
Data and instructions
|
|
1
|
Types
|
Model LSQX-2 electric wire gas melting spray gun
|
|
2
|
Operation
|
Fixed or handheld operation, generally recommended hand-job mode
|
|
3
|
Power source
|
input AC220V,100W
|
|
4
|
Speed mode
|
Output DC 0-24V CVT
|
|
5
|
Weight
|
≈2.3 Kg
|
|
6
|
Dimensions
|
230×90×180
|
|
7
|
Heat source
|
Oxygen + acetylene gas, oxygen + propane gas
|
|
8
|
Types
|
LSQX-2A
|
LSQX-2B
|
|
Oxygen acetylene gas electric melting shot gun
|
Oxygen propane gas electric melting shot gun
|
|
Applicable
|
Various types of melting wire
|
The melting point of the wire ≤ 750oC wire |
|
9 |
Wire
|
Generalφ2.0、φ2.3、φ3.0（or imported materialsφ3.17）
|
|
10
|
Wire Feed
|
≥8.0Kg
|
Detailed technical questions please contact 021-68911069,call to Mr. Ge 13917088713
